Orlandoo Hunter 2S LiPo PCB/ESC/LED Board

Orlandoo Hunter 2S LiPo PCB/ESC/LED Board. This is the upgraded 2S LiPo compatible control unit for the Wrangler OH35A01, Pajero OH32A02 and F-150 OH35P01 trucks. Package includes the control board, three white LED lights, four chip LED lights, wire, and heat shrink.

Specifications:
Size: 23x22x7mm
Working Voltage: 4.8-9.6V
Input Signal Type: PWM
Servo Signal Range: 1ms-2ms
Driving Frequency: 250Hz
Output Current: 5A
Connector Type: PH2.0 (red=battery, white=motor)

Includes:

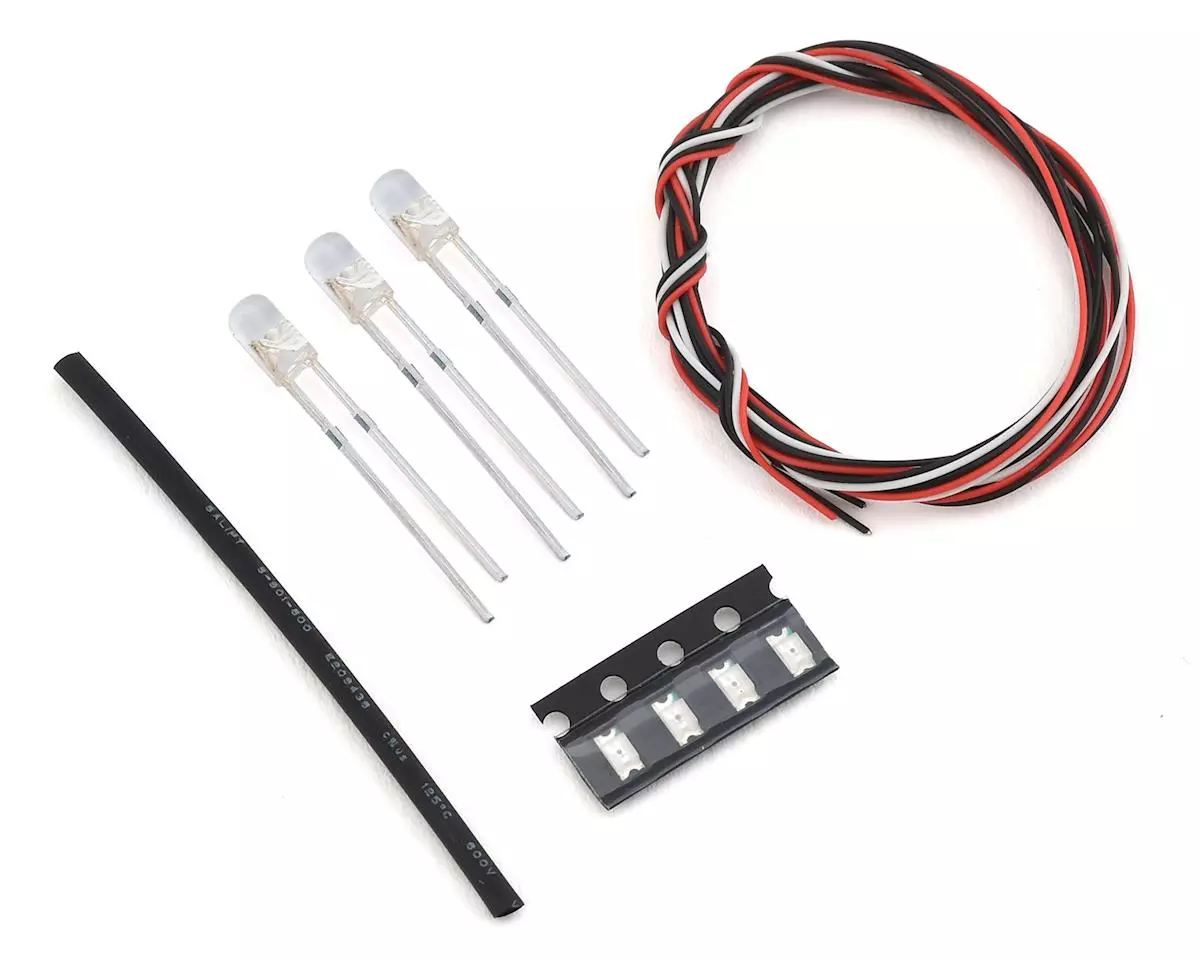

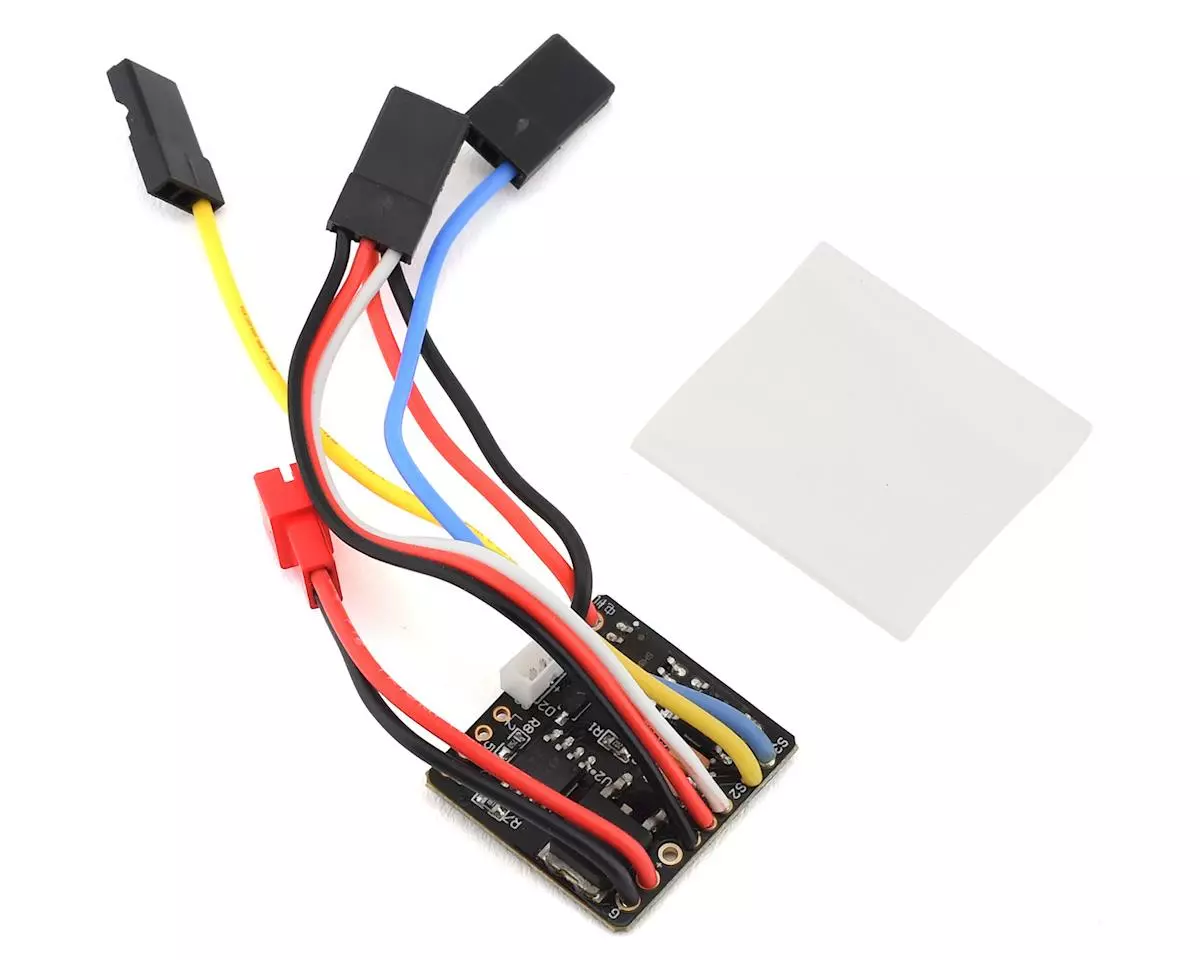

• (1) PCB/ESC/LED Board
• (2) 4mm LED
• (2) SMD LED
• Wire and heatshrink

This product was added to our catalog on October 3, 2018
